The foam fire truck is the core equipment for fighting flammable liquid fires. By precisely mixing foam concentrate with water at ratios of 1%, 3%, or 6% (accuracy ±0.5%), this foam fire truck delivers a uniform foam blanket for jet fuel fires at airports or tank fires at refineries. Its stainless steel foam tank and intelligent proportioning system ensure zero mixing errors, increasing fire suppression efficiency by over 50% while reducing foam waste by 30%. It is the invisible guardian of industrial fire safety.

The core working principle and key testing procedures of the foam fire truck foam system are the focus of many customers. Let's learn about it today.

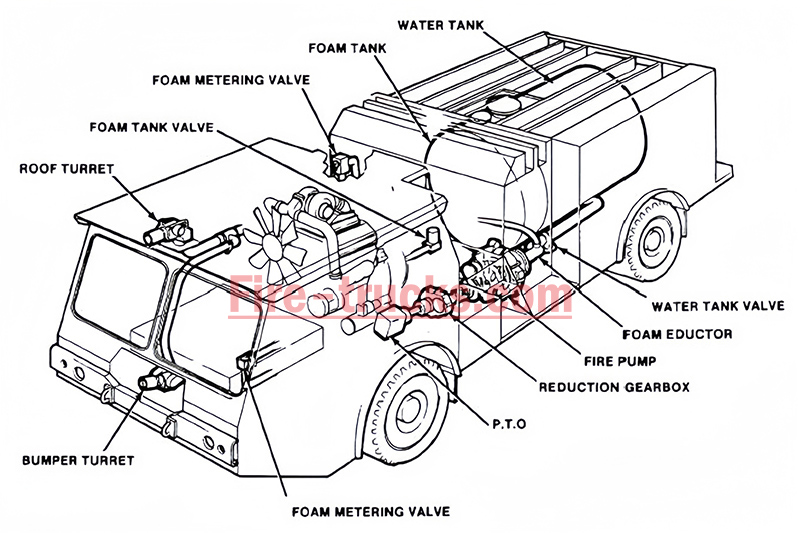

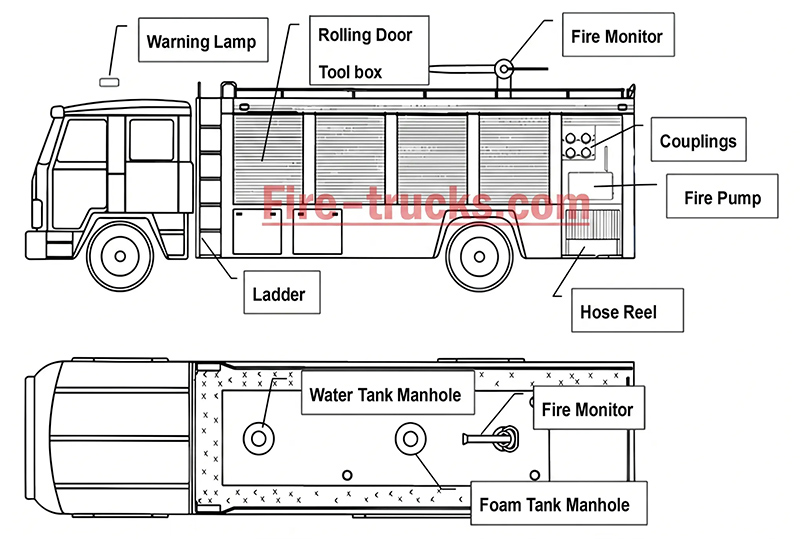

1. Three Key Components of the Foam Fire Truck Foam System

1.1 Foam tank
304 stainless steel construction (4mm bottom plate, 3mm side plates), corrosion-resistant design, equipped with manhole cover, level indicator, drain port, and breather valve.

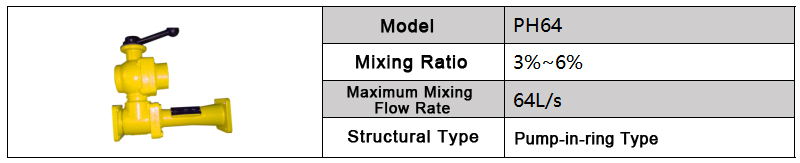

1.2 Foam proportioner
Installed in the water line, creates a vacuum as water flows through, drawing foam concentrate into the water stream. Common mixing ratios: 1%, 3%, and 6%.

1.3 Foam monitor and nozzles
Roof-mounted or handheld, 360° horizontal rotation, -30° to 80° vertical tilt, capable of producing expanded foam for fire suppression.

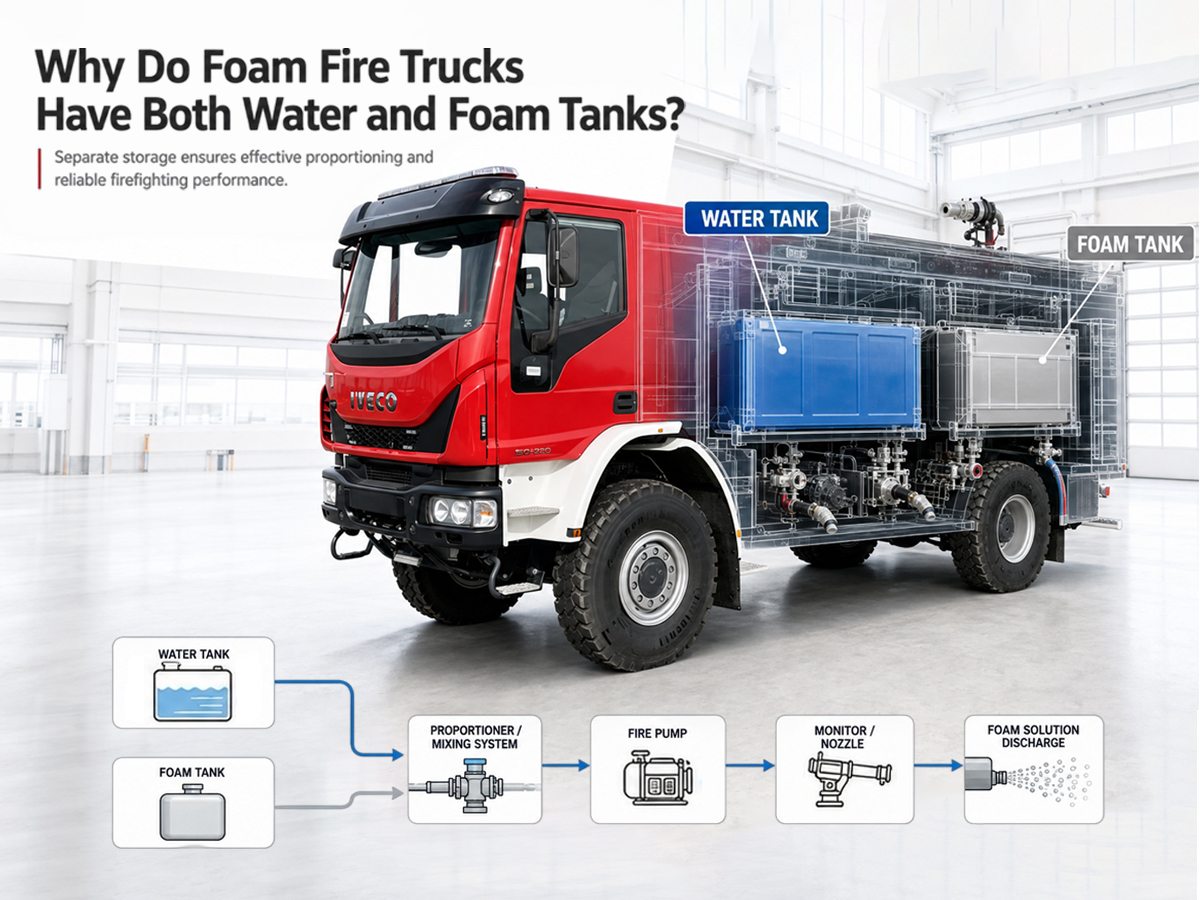

2. Core Working Principle of the Foam System

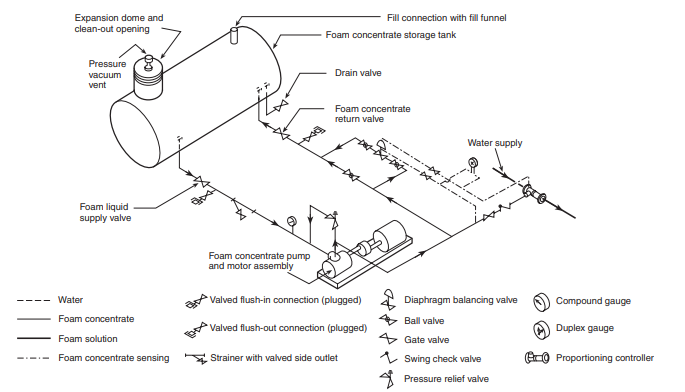

2.1 Proportioning system
Water flows through the proportioner → creates a vacuum → draws foam concentrate from the foam tank → mixes at preset ratio (1%, 3%, or 6%) → foam solution flows to the pump.

2.2 Pump pressurization
Foam solution enters the centrifugal pump → pressurized to 1.0-1.2 MPa → delivered through piping to the discharge outlets or monitor.

2.3 Foam expansion
Pressurized foam solution passes through foam nozzle → air is entrained → solution expands into finished foam → foam blanket covers fuel surface → cuts off oxygen and suppresses fire.

3. Material and Component Selection

To provide customers with a more perfect foam fire truck, Fire TRUCKS selects the best materials and components for the foam system.

3.1 Foam tank system (storage and corrosion protection core)

Structural Layer	Material / Process	Function
Inner tank	304 stainless steel (4mm bottom, 3mm side)	Corrosion resistance, foam concentrate compatibility
Manhole cover	Quick-locking mechanism	Easy access for filling and cleaning
Level indicator	Visual gauge	Real-time foam concentrate level monitoring
Breather valve	Pressure relief	Prevents tank vacuum or overpressure

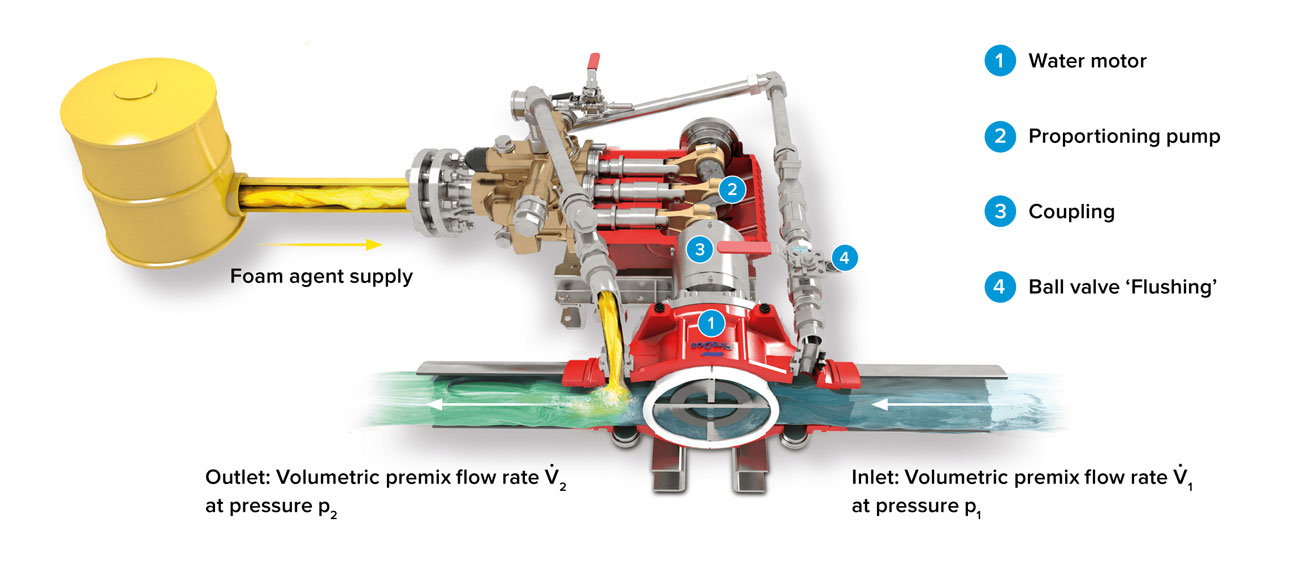

3.2 Proportioning system (mixing actuator)

Foam proportioner: Installed in the water line, utilizes venturi effect to draw foam concentrate. Common ratios: 1%, 3%, 6%
Control types: Manual, semi-automatic, or fully automatic
Pickup line: Stainless steel or reinforced hose with strainer to prevent blockage

3.3 Discharge system (foam delivery)

Foam monitor: Roof-mounted, 360° rotation, water range ≥65m, foam range ≥60m
Foam nozzles: Air-aspirating design, expands foam solution into finished foam
Piping: Seamless steel or aluminum alloy, flanged connections, flexible couplings at vibration points

3.4 Auxiliary system (functional guarantee)

Flushing system: Fresh water flush after each use → prevents foam residue crystallization and blockage
Cooling system: Cooling water line for power take-off (PTO) during prolonged foam operations
Control panel: Digital display, pressure gauges, emergency stop, system status indicators

4. Pre-Test Inspection

Before conducting any tests, a thorough pre-test inspection is essential. This is the first line of defense against potential problems that could affect foam system performance.

4.1 Visual inspection
Start by visually inspecting all foam system components. Check the foam tank for any signs of damage, such as cracks or dents that could cause leaks. Examine the foam proportioner, hoses, nozzles, and valves for wear. Look for loose connections, corrosion, or blocked passages. Any damaged components should be replaced immediately to prevent problems during testing.

4.2 Fluid levels
Ensure the foam concentrate tank is filled to the proper level. The correct amount of foam concentrate is necessary for the system to produce the right foam concentration. Also check the water tank to ensure sufficient water is available for testing. Insufficient water supply can lead to inaccurate test results and improper foam generation.

4.3 Document review
Review the maintenance records of the foam fire truck, including previous test reports and service history. This information helps identify past issues and predict potential problems in the current test.

5. Static Pressure Test

The static pressure test checks the integrity of the foam system under pressure without actually flowing foam.

5.1 System isolation
First, isolate the foam system from the rest of the fire truck. Close all valves to prevent cross-flow between the foam system and the water system. This step ensures the test accurately measures the pressure within the foam system alone.

5.2 Pressurization
Apply the specified pressure to the foam system using a pressure gauge. The pressure should follow the manufacturer's recommendations. Monitor the pressure gauge carefully over a period of time to observe any pressure drop. A drop in pressure may indicate a leak in the system that needs repair before further testing.

5.3 Leak detection
While maintaining pressure, perform a thorough visual inspection of the entire system for signs of leakage. Check around valves, fittings, and hoses for drips, sprays, or pooling of liquid. If leaks are found, mark the leak locations and take corrective action to repair them.

6. Foam Proportioning Test

One of the most critical aspects of a foam fire truck's foam system is its ability to accurately mix foam concentrate with water at the correct ratio.

6.1 Sample collection
Start the foam system and let it run for a short period to ensure the system is properly primed. Then collect foam samples from different points in the system, such as the nozzle. These samples will be used to determine the actual foam-to-water ratio.

6.2 Ratio measurement
Use a refractometer or other suitable test equipment to measure the percentage of foam concentrate in the collected samples. Compare the measured ratio with the manufacturer's recommended ratio. If the ratio does not match, it may indicate a problem with the foam proportioner.

6.3 Proportioner adjustment
If the measured ratio is not within the acceptable range, adjust the foam proportioner. This may involve changing the proportioner setting or checking for blockages or malfunctions. Repeat sample collection and ratio measurement until the correct ratio is achieved.

7. Foam Discharge Test

The foam discharge test evaluates the system's ability to produce and distribute foam effectively at the required rate.

7.1 Nozzle flow and spray pattern
Attach the appropriate nozzle to the hose and ensure the system is producing foam steadily. Observe the flow rate and spray pattern from the nozzle. The flow rate should meet the foam system specifications. The foam spray pattern should be uniform and effectively cover the target area. If the flow rate is too low or the spray pattern is uneven, it may indicate a clogged nozzle or a pump malfunction.

7.2 Coverage area
Measure the area covered by the foam. This is important for evaluating how effectively the system can extinguish a fire in a specific space. Ensure the coverage area meets the design requirements of the foam fire truck. If the coverage area is insufficient, nozzle or foam system settings may need adjustment.

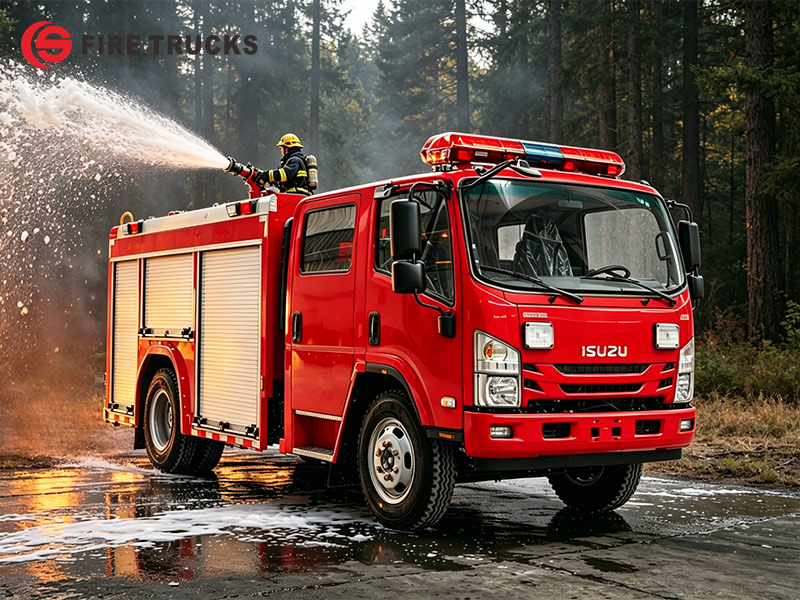

7.3 Foam quality
Evaluate the quality of the foam being discharged. The foam should be stable with good consistency and texture. It should adhere to surfaces and not break down too quickly. Poor quality foam may not provide adequate fire suppression capability. Watch for signs of excessive runoff, which may indicate too much water in the mixture or problems with the foam concentrate.

8. Post-Test Maintenance

After completing all tests, proper post-test maintenance is essential to keep the foam system in optimal condition.

8.1 System flushing
Flush the entire foam system with fresh water to remove residual foam concentrate and impurities. This helps prevent corrosion and blockages in system components. Open all valves and allow water to flow through hoses and nozzles for a sufficient period of time.

8.2 Component cleaning
Clean all accessible components, such as nozzles and strainers. Remove any dirt, debris, or dried foam that may have accumulated during testing. This ensures the components will function properly the next time the foam system is used.

8.3 Record keeping
Record all test results, including pressure readings, foam proportioning ratios, flow rates, and any maintenance or repairs performed. This record serves as an important reference for future tests and helps track the operational performance of the foam system over time.

9. Test Acceptance Criteria

Test	Acceptance Criteria
Static pressure test	No pressure drop >5%, no visible leaks
Foam proportioning test	Measured ratio within ±0.5% of set ratio (e.g., 2.5%-3.5% for 3% setting)
Foam discharge test - flow	Meets system specifications
Foam discharge test - pattern	Uniform, no gaps
Foam discharge test - quality	Stable, good consistency, adequate expansion

10. Test Frequency Recommendations

Test	Recommended Frequency
Visual inspection	Monthly
Fluid level check	Before each use
Static pressure test	Annually
Foam proportioning test	Annually or after any maintenance
Foam discharge test	Annually or when foam quality is suspected
Foam concentrate sampling	Every 6 months

11. Common Problems and Causes

Problem	Possible Cause
Pressure drops during static test	Leak in piping, valve, or seal
Incorrect foam ratio	Proportioner setting off, blocked pickup line, empty foam tank
Low flow rate	Clogged nozzle, pump problem, low water supply
Uneven spray pattern	Nozzle blockage, incorrect nozzle type
Poor foam quality (watery)	Low concentrate ratio, expired concentrate
Foam breaks too quickly	Wrong concentrate type, contamination
No foam	Proportioner not working, foam tank empty

12. Conclusion

Testing the foam system on a foam fire truck is essential for ensuring reliable performance when fighting flammable liquid fires. A properly tested foam system can mean the difference between a controlled fire and a major disaster.

The complete test sequence includes five main steps:

Pre-test inspection – Visual checks, fluid levels, document review
Static pressure test – Checks for leaks in piping and seals
Foam proportioning test – Verifies the correct concentrate-to-water ratio (1%, 3%, or 6%)
Foam discharge test – Evaluates flow rate, spray pattern, coverage, and foam quality
Post-test maintenance – System flushing, component cleaning, record keeping

Regular testing at recommended intervals — combined with proper documentation and safety precautions — protects both personnel and equipment and ensures the foam system will work when it is needed most.
