Africa Mauritania client purchased totally 4 units Sinotruk HOWO pumper fire engine from POWERSTAR TRUCKS and used in the the capital Nouakchott. Fire truck also can be called fire engine and fire pumper, which is a vehicle designed and manufactured to meet the needs of multiple fire extinguishing and people rescue project internationally. Customized double cabin row for firefighters carriage, various fire fighting equipment and tools for fire fighting, fire rescue, etc. To guarantee HOWO fire fighting trucks working more efficiently, we have customized to have truck equipped with Aluminum alloy ladders, water foam and dry powder fire agent and storage tankers, efficiently fire pump CB10/60 model matched with PL8/48 fire monitor, and efficiently jetting distance over 70m, fire fighting hose reel with gun for long distance fire extinguishing, breathing apparatus with mask, protective clothing, rescue tools, first-aid kit, etc. All service for HOWO fire trucks for efficiently and reliable working. To guarantee Mauritania clients use HOWO fire engine more easier and efficiently, all truck matched with full sets English version catalogue for service, including User's Manual for operation guidance, Truck Manual and Spare Parts Manual for usage and maintenance.

SINOTRUK HOWO 14,000L Powder Pumper Fire Truck

POWERSTAR factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

Africa Mauritania HOWO Dry Powder Fire Truck manual

HOWO powder fire engine

»Ⅰ. HOWO Fire Truck Advantages :

★ 247KW / 336HP powerful WEICHAI diesel engine, 100,000 Km without prblem.

★ SINOTRUK HOWO classical HW76 cabin, Europen design

★ Mounted CB10/60 fire pump, 60L/s flow rate, super reliable

★ Top mounted PL8/48 water fire cannon, durable service

★ 500L dry powder with Nitrogen bottole, with air control valves

★ Integrated control system for foam and powder, with panel at rear

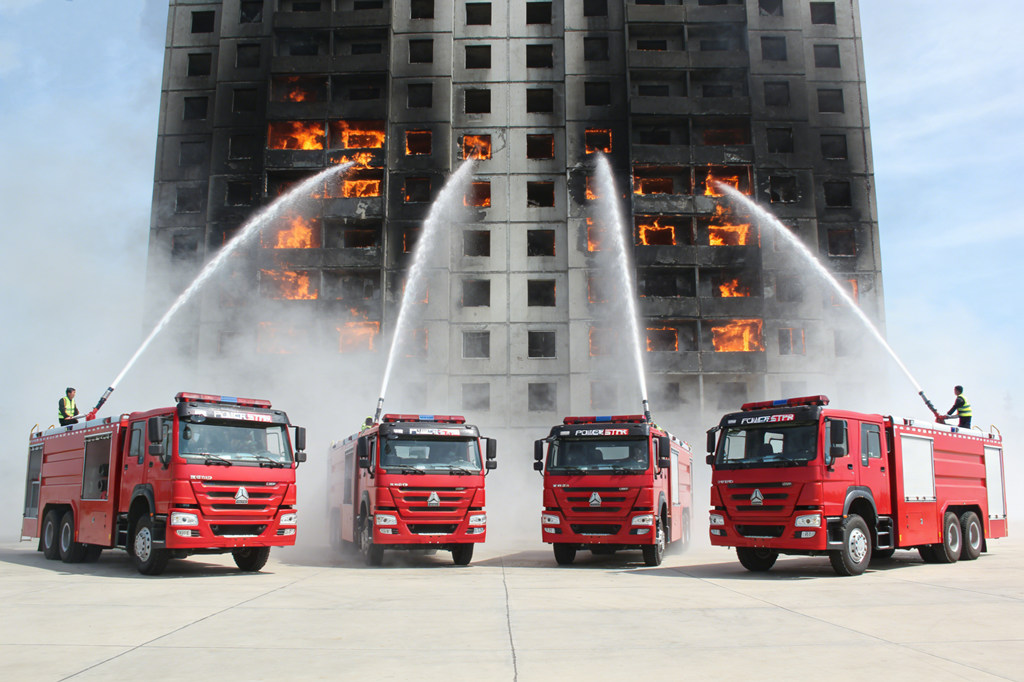

HOWO fire fighting trucks for rescue process

» Ⅱ. Howo Rescue Fire Engine Drawing:

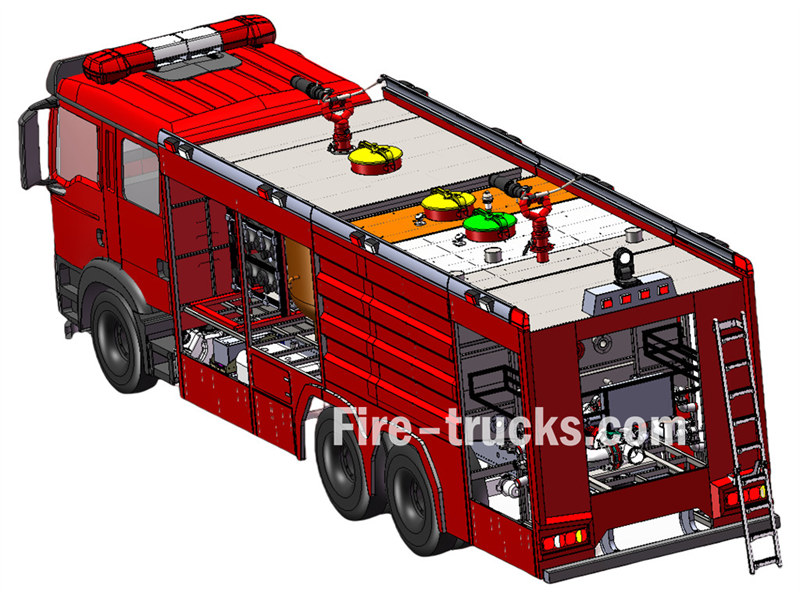

HOWO 12000L foam tanker fire truck 3D drawing

To guarantee Mauritania Nouakchott clients purchased satisfy HOWO 6x4 Water & Foam & Powder Fire Truck, so we POWERSTAR Engineer Department do design the truck firstly, then start for production. Howo fire truck equipped with Sandwich PTO, fire pump, fire monitor, crew room, hose box, pump room, English version control box, inlet and outlet pipeline, rear climbing ladder, top pillow lamp, all necessary firefighting equipment, and dry powder system. Customized Double-row cabin with 2+4 seats nice driving feeling. Therefore, the vehicle is an ideal Fire Truck mainly for firefighting project. Below are overview of the Africa Mauritania customer purchased Sinotruk HOWO dry powder fire engine.

HOWO fire fighting truck ready for Mauritania

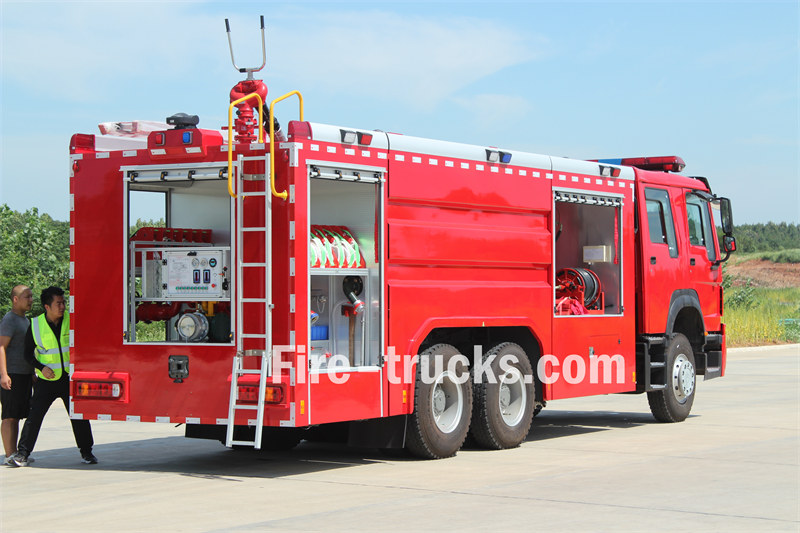

HOWO pumper fire truck

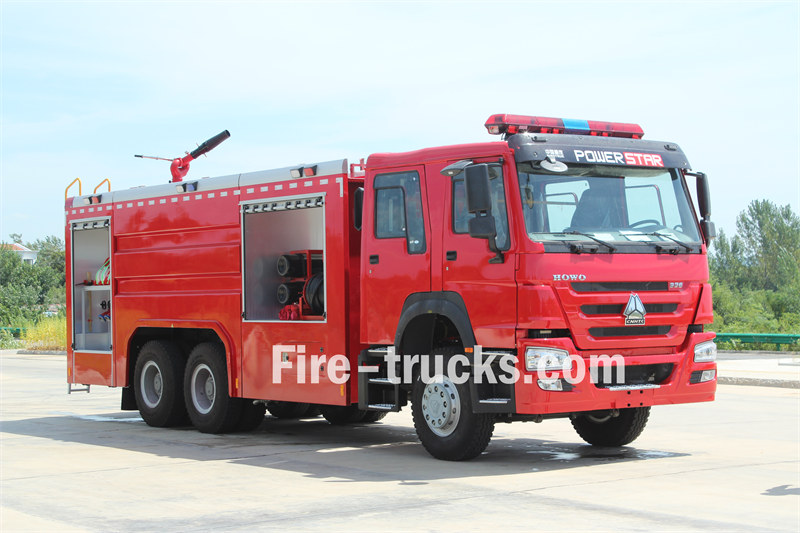

HOWO fire fighting truck for sale

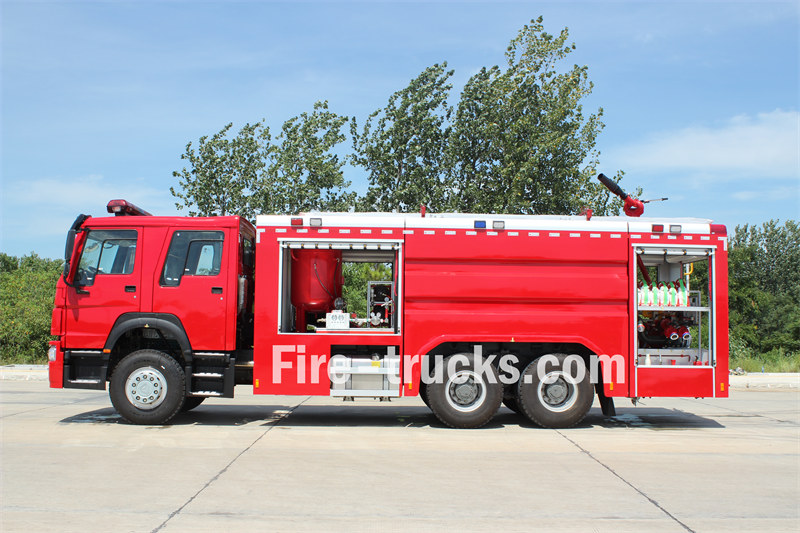

Left side view of HOWO fire engine

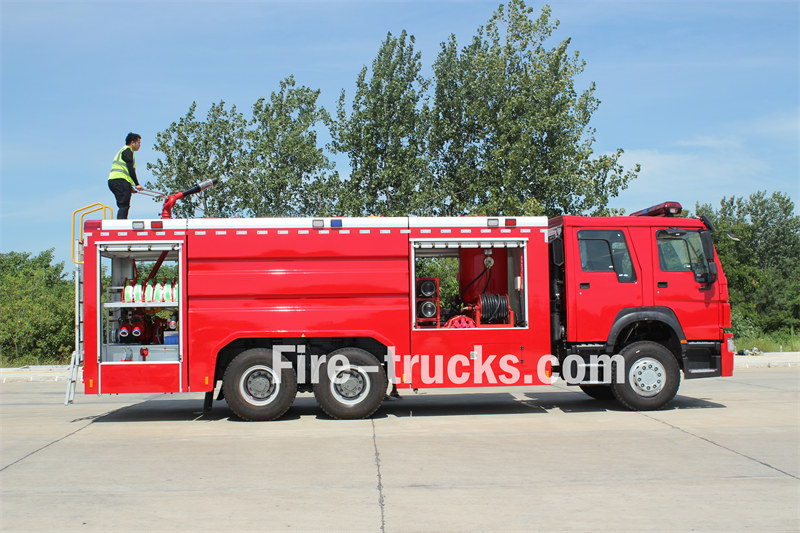

Right side view of HOWO fire tanker truck

» Ⅲ. HOWO fire truck factory production:

After POWERSTAR Engineer Dept provide detailed fire truck drawing and confirmed with Mauritania customers, then we Production Department can start production process as schudule, mainly as below process:

Classify main component of the Fire Rescue Equipment
Start modify HOWO truck chassis
Install mutilple fire equipment, including pump, monitor
Install the dry powder system
Factory do preshipment testing
Start for shipment

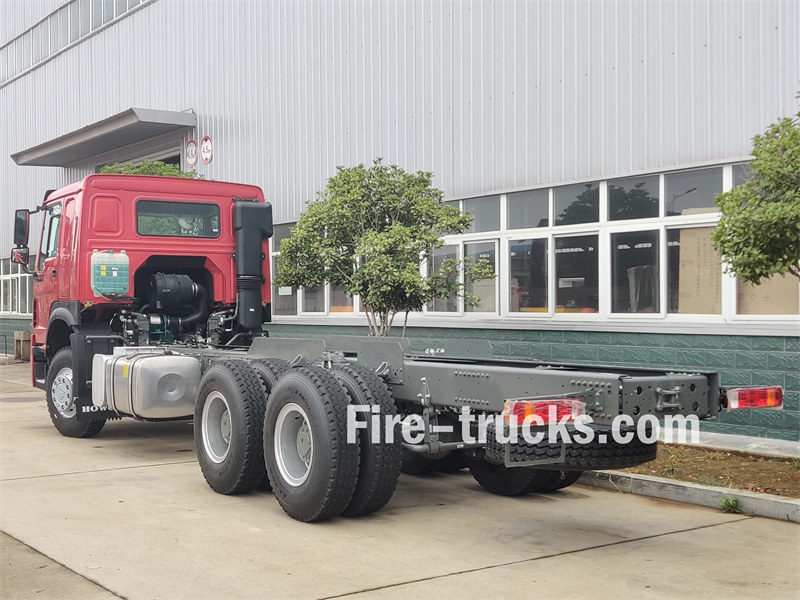

And Below showing the start of manufacturer, when HOWO 6x4 Left Hand Drive chassis ZZ1257N4641W arrived factory, our Engineers will guidance worker reconfigure the chassis layout, including fuel tanker, battery, exhaust pipe, air tankers, etc. Then can make truck suitable for fire fighting trucks building. Equipped WEICHAI model diesel engine with horse power 247kw / 336HP, which is a 6-cylinder, 4-stroke, water-cooled, turbocharged and intercooled engine, efficiently displacement 9726ml, matched working with HOWO 10 shift manual transmission gearbox, 10 shift forward and 2 shift backward, efficiently reduce the fuel consumption, totally installed 11 units steel tires with model 12.00R20 model, including one spare tire, very suitable for multiple kinds of road condition and suitable for mountain climbing. Wheelbase can be multiple optional with 4625+1350mm, suitable and convenient designed service for fire extinguishing project for multiple area.

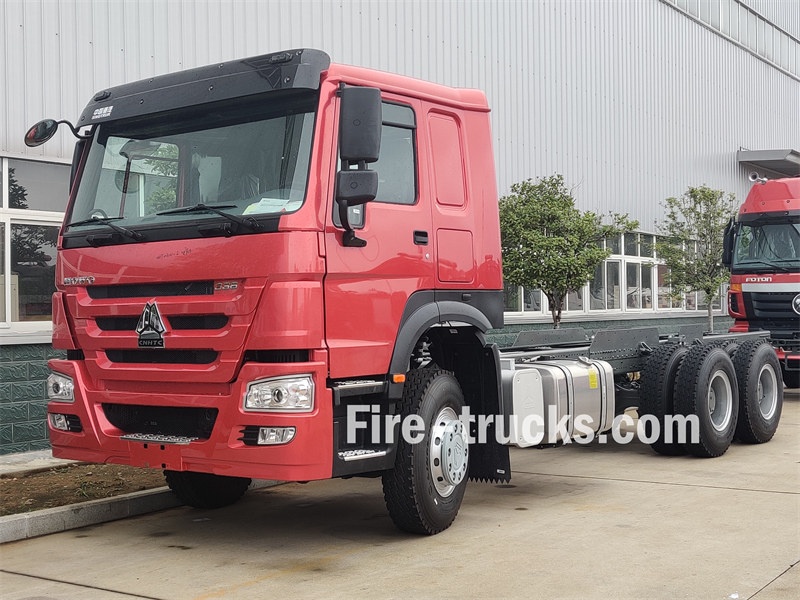

HOWO fire fighting truck chassis front view
Left side view of HOWO fire engine

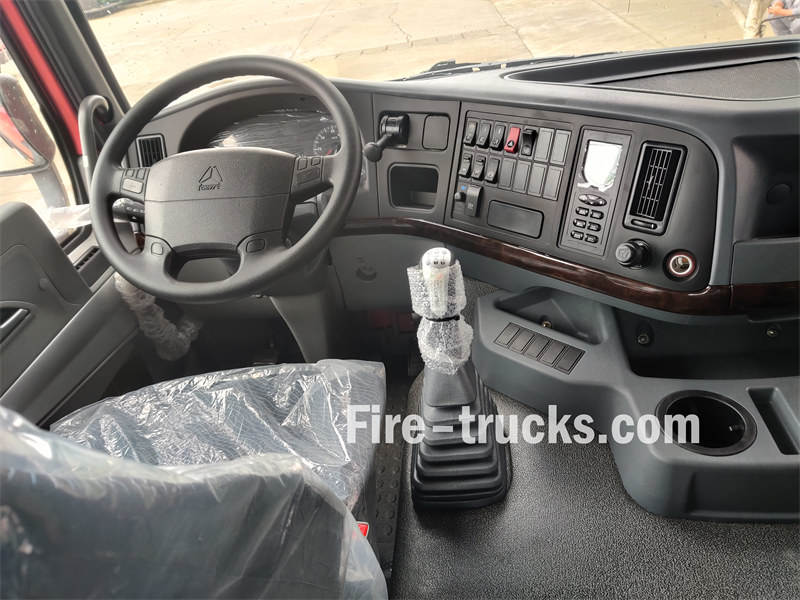

ZZ1257N4641W HOWO truck cabin

» Ⅳ. Sinotruk fire pumper truck Main Component:

HOWO 10 wheeler tanker fire engine fully rely on Sinotruk chassis, original HW76 cabinet equipped A/C with heating and cooling function for comfortable driving. And truck mounted with full stainless steel SS304 material tanker body, with efficiently volume 12000Liters, including 10000L water tanker, 1000L foam taner and 500L dry powder tanker, equipped with one Chinese brand CB10/60 fire pump and PL8/48 fire monitor on the top of tanker body, full sets fire fighting rescue equipment, all well installed and make truck an ideal vehicle for fire extinguishing project in Honduras street and community. Which have advanced features for design and reliable quality for performance, and been export to Africa Mauritania market. And below are advanced features for overview

-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

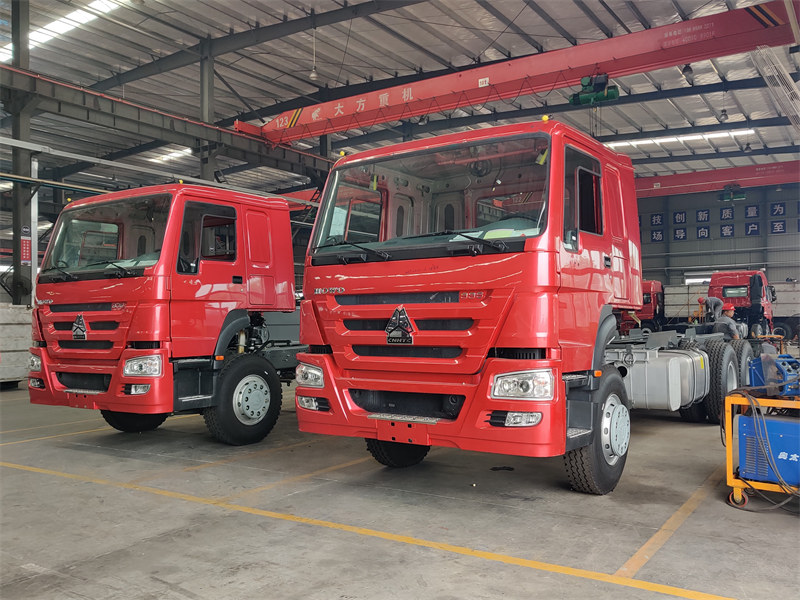

Fire truck install PTO and fire pump

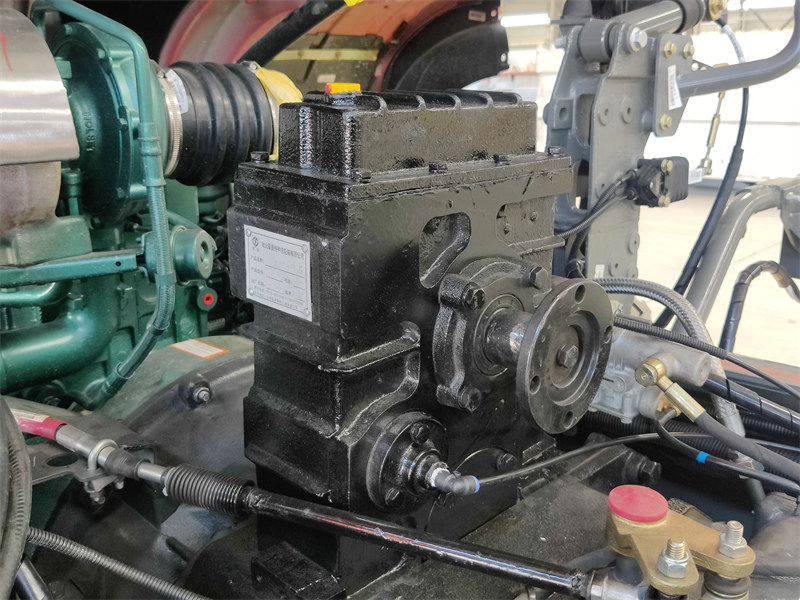

HOWO fire truck mounted with Sandwich PTO

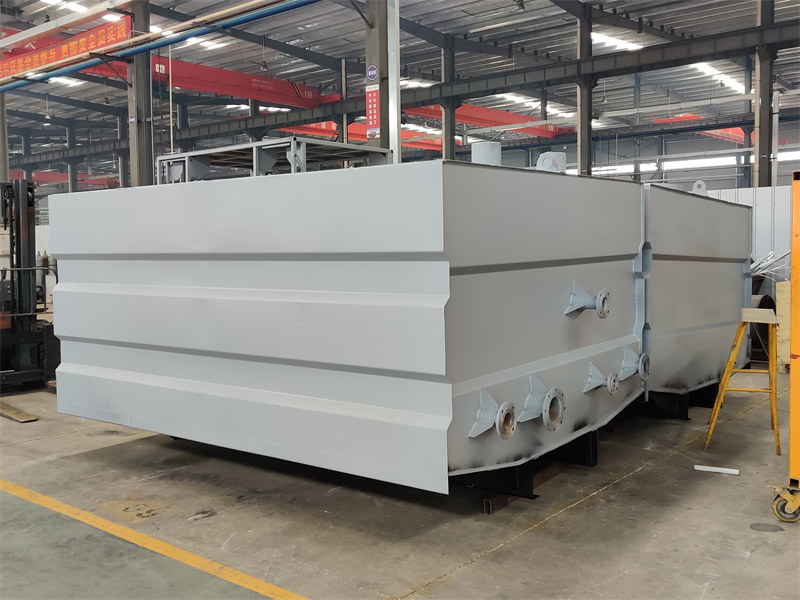

Water and foam tanker assembly

HUAYU CB10/60-TB fire pump

Model: CB10/60
Low Working Pressure: 1.0Mpa
Low Pressure Flow Rate: 60L/s
Self Suction Dept: 3m
Maximum Working Pressure: 1.605Mpa

PS8/48 Foam Fire Monitor

Model: PL8/48

Pressure: 0.8Mpa

Working Range: Water ≥ 70m, Foam ≥ 60m

Vertical Rotation: -45° ~ +70°

Horizontal Rotation: 0° ~ 360°

Flow Rate: 48L/s

Top mounted with water foam canon

» Ⅴ. HOWO fire tanker truck Dry Powder Assembly:

Sinotruk HOWO 6x4 fire engine equipped with 500L dry powder assembly, including 500liters dry powder tanker and 2 sets nitrogen bottles, matched working with air way control valves, all can be used in an integrated control plate. Which have advanced features for design and reliable quality for performance.

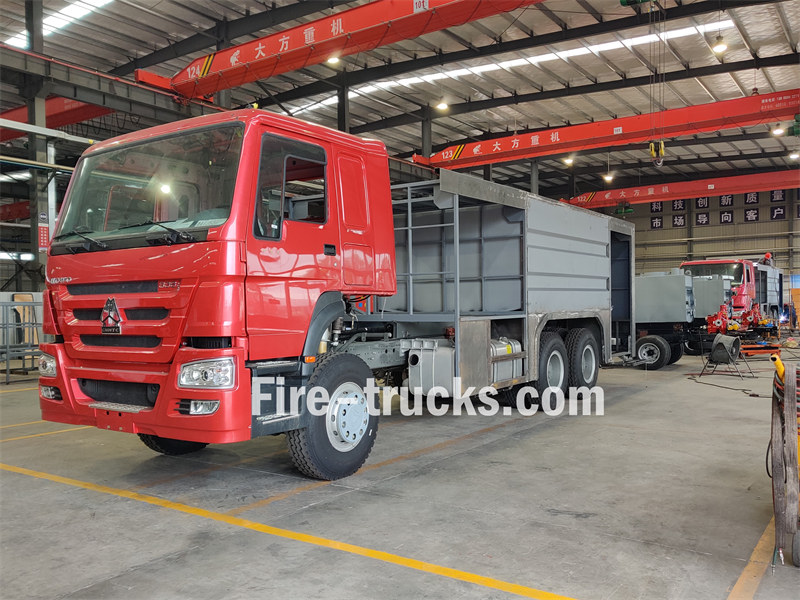

HOWO fire truck factory install powder system

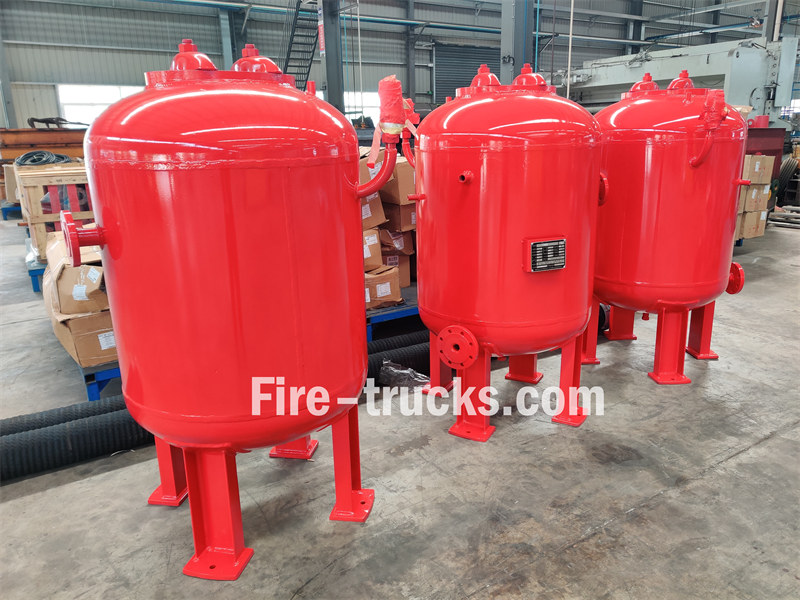

HOWO fire truck with 500kg powder tanker
HOWO fire engine nitrogen bottles storage box and controller

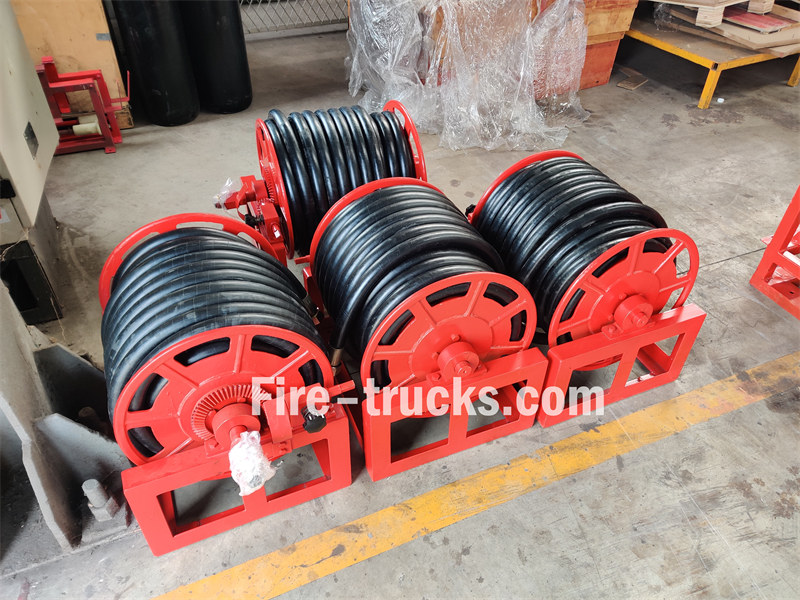

Matched with 35m hose reel

» Ⅵ. HOWO fire rescue vehicle well finished:

After HOWO 6x4 fire engine with all fire fighting equipment well installed, then can be ready for painting, including antirust red painting as bottom, middle painting and outside red painting. After painting dry then can be ready for factory testing, and ready for shipment. Also for all our fire trucks are designed to do waterproof testing, so can guarantee no leakage inside cabin and safety for driving.

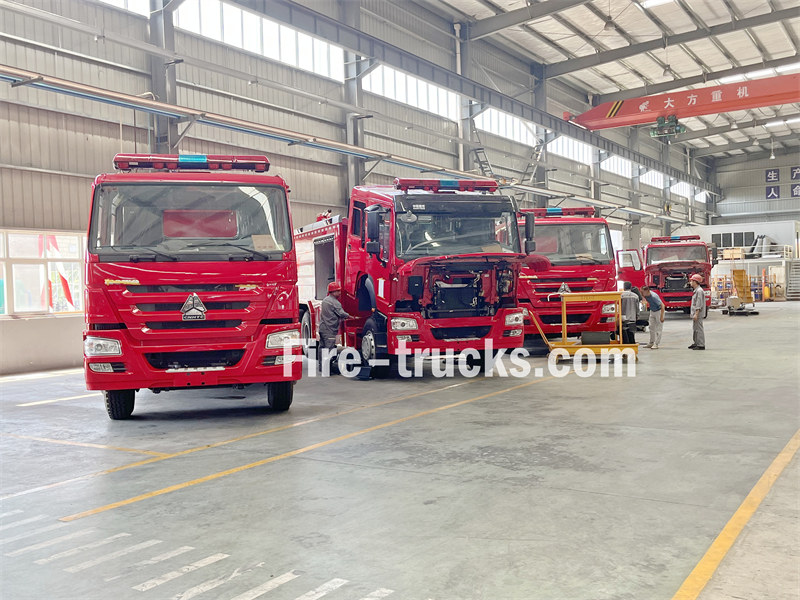

HOWO fire fighting truck with factory inspection

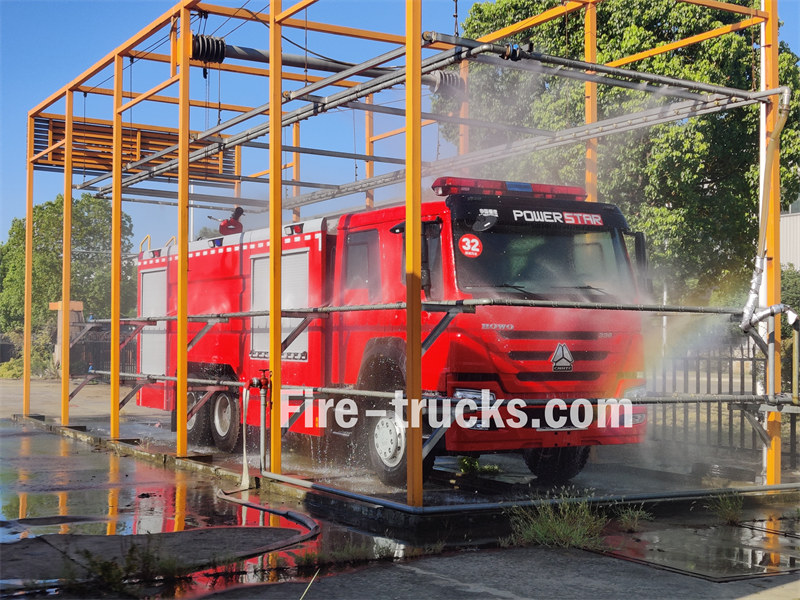

HOWO tanker fire truck waterproof testing

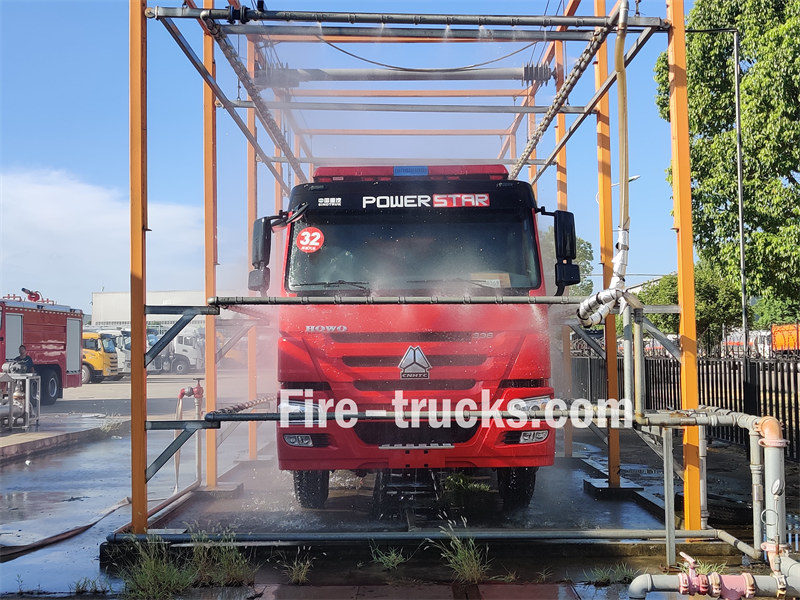

HOWO fire engine for waterproof testing

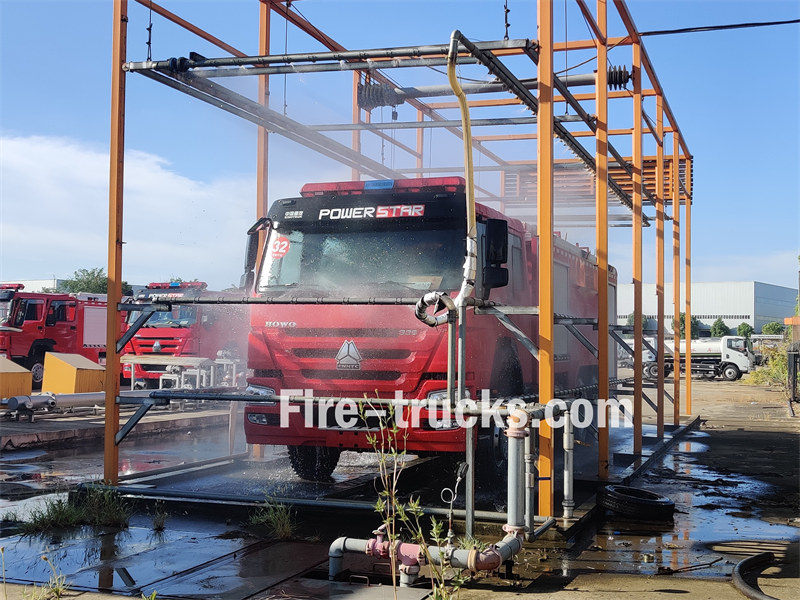

HOWO pumper fire engine waterproof testing

» Ⅶ. Howo 336HP Pumper Fire Engine Preshipment Testing:

HOWO 336HP water foam tanker pumper fire fighting trucks do multiple factory testing, then can be ready for shipment to Africa Mauritania.

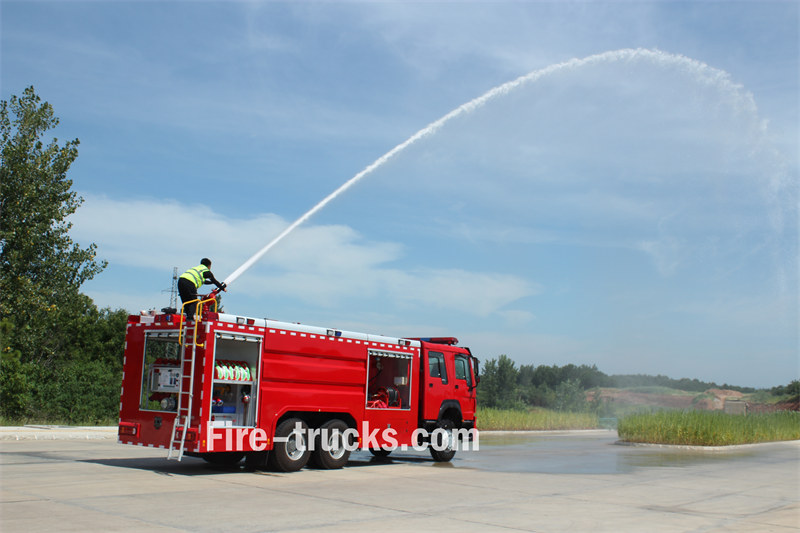

Factory testing for water jetting

Sinotruk HOWO pumper fire fighting trucks can do water directly jetting testing and accelerated for jetting, then can guarantee efficiently fire extinguishing distance over 70m.

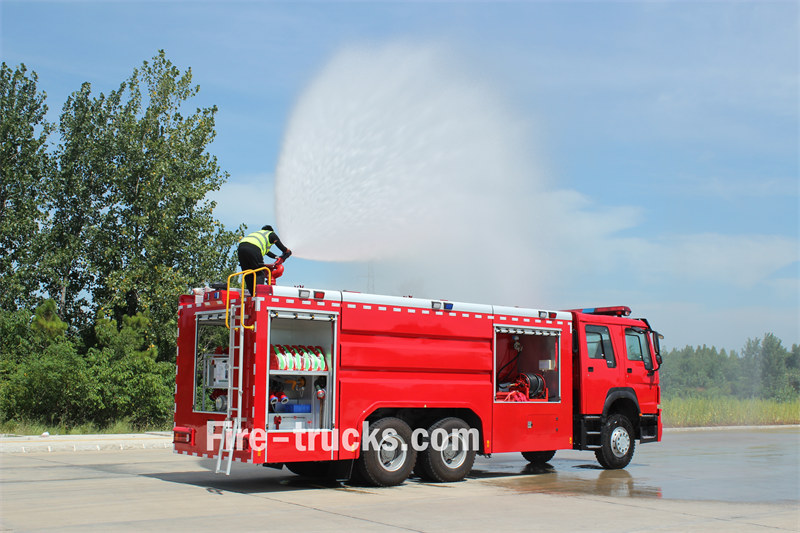

Factory testing for fog spraying

Sinotruk HOWO 10000L water tanker 1000L foam tanker and 500kg dry powder pumper fire truck also do fog spraying testing, which can efficiently suppress the fire, and then do fire extinguishing process.

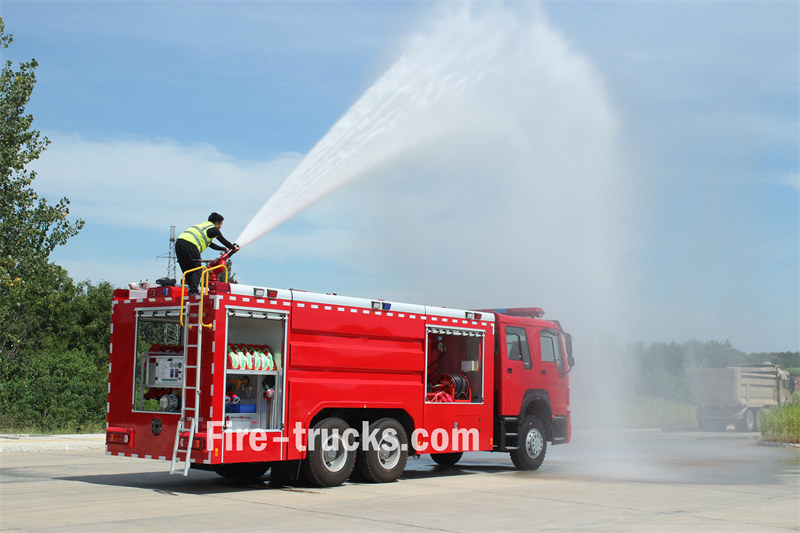

HOWO fire trucks for water spraying testing

» Ⅷ. HOWO fire extinguisher truck advantages:

HOWO 6x4 tanker fire engine is an ideal truck for fire extinguishing and people rescue, and below are professional introduction of advantages of the Howo fire truck, which export to Africa Mauritania capital city Nouakchott.

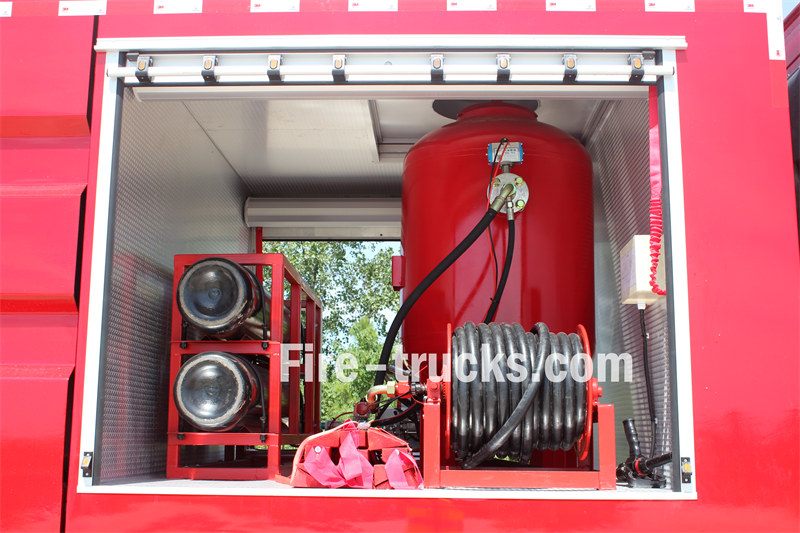

Dry powder assembly for convenient usage

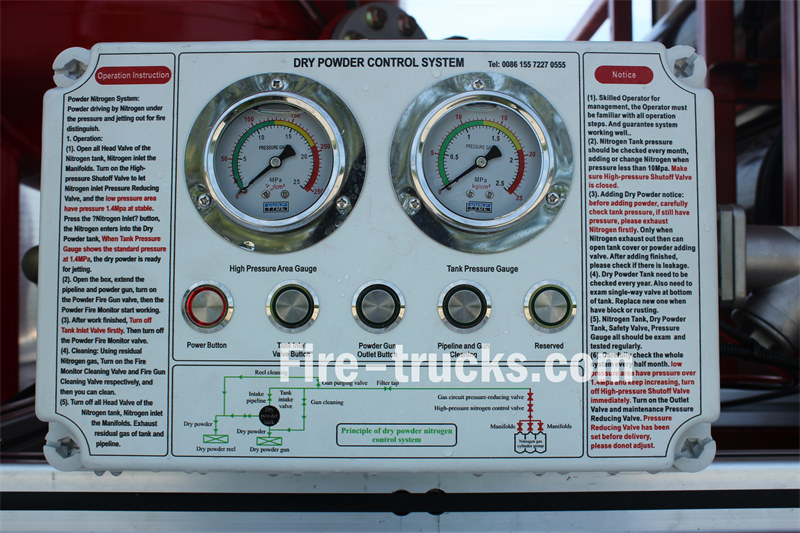

Integrated control box with guidance

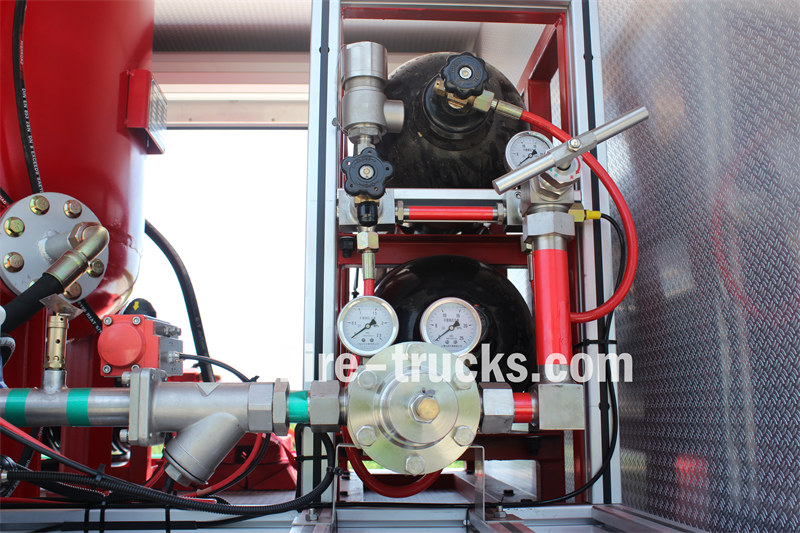

Powder tanker fire truck airway control valve

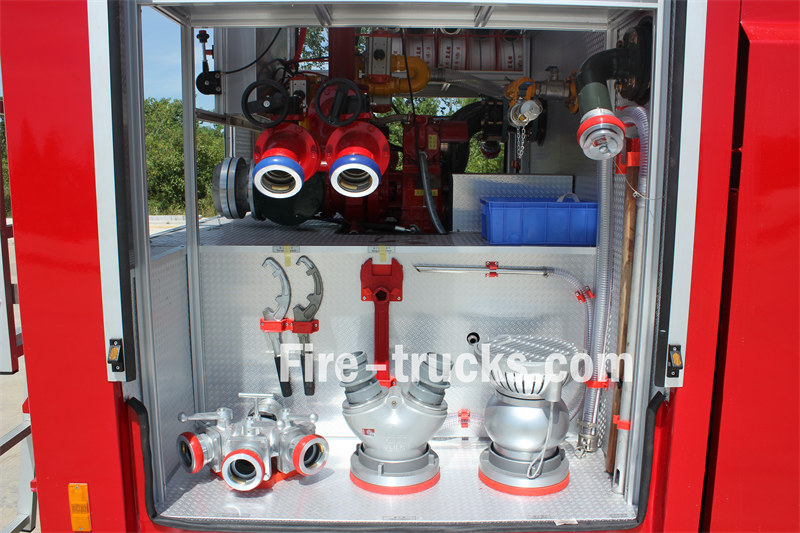

Pump fire truck room with rescue equipment

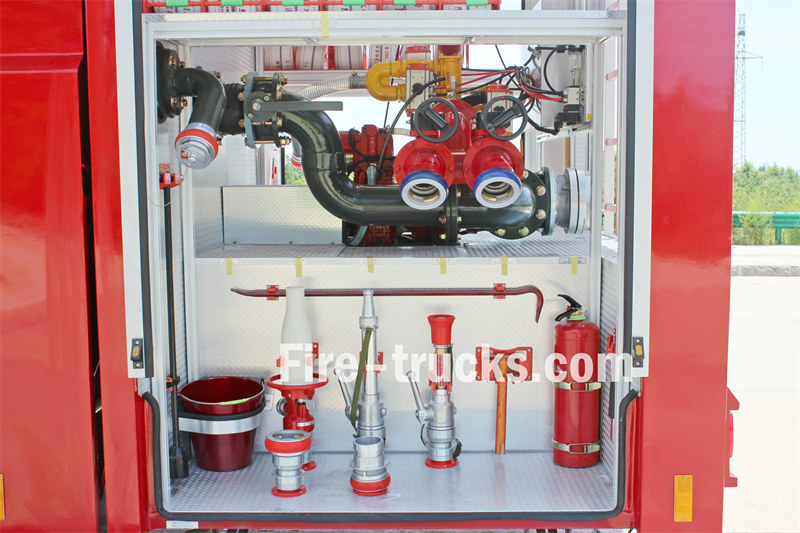

HOWO fire truck with CB10/60 fire pump

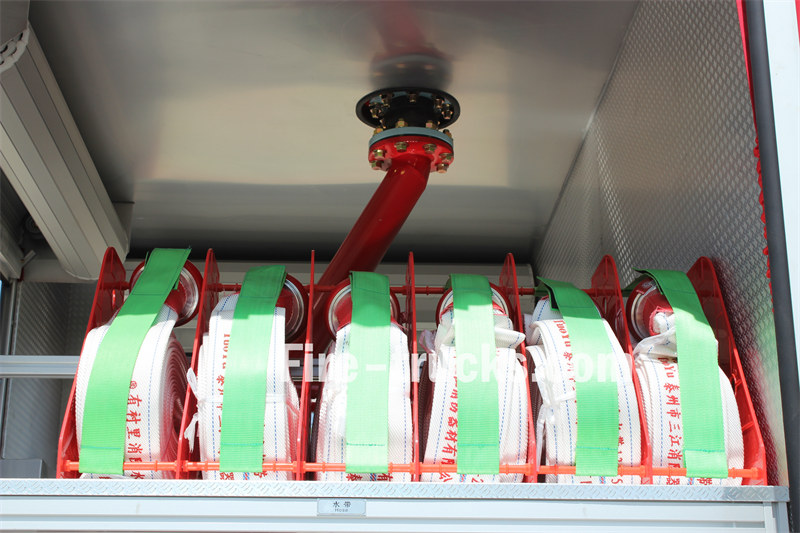

Fire fighting hose reel

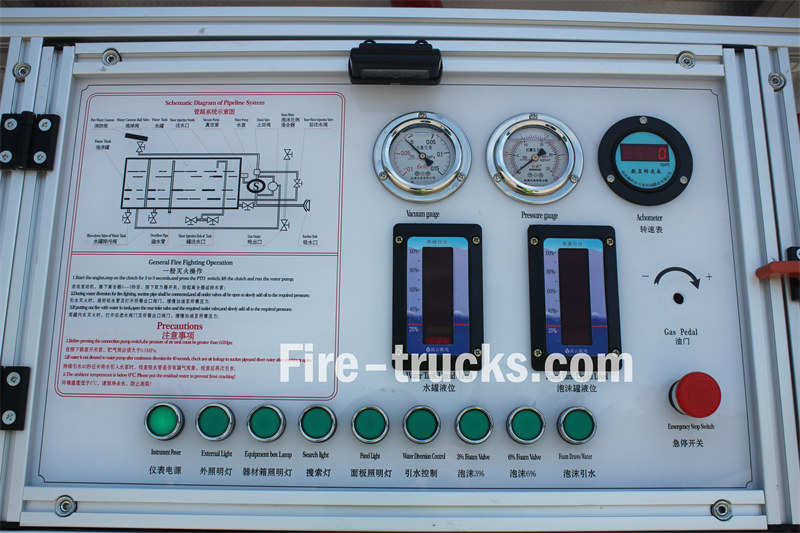

Integrated control panel at rear pump room

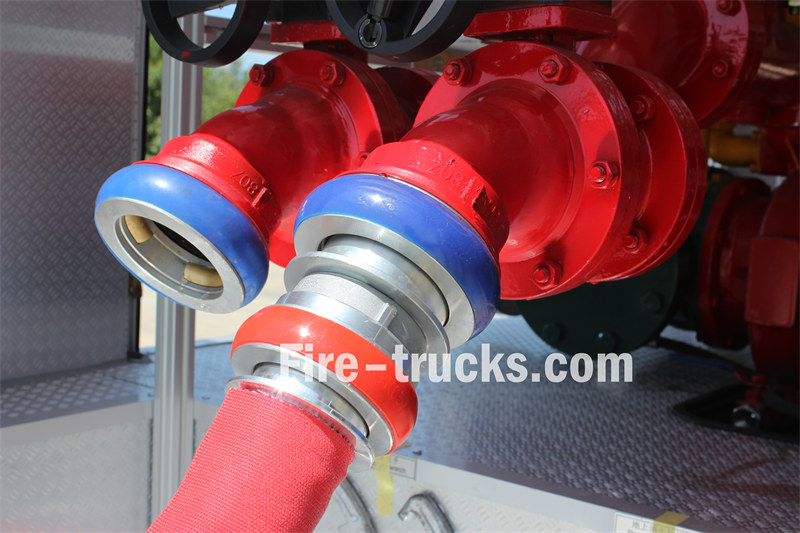

DN80 and DN65 hose reel and connector

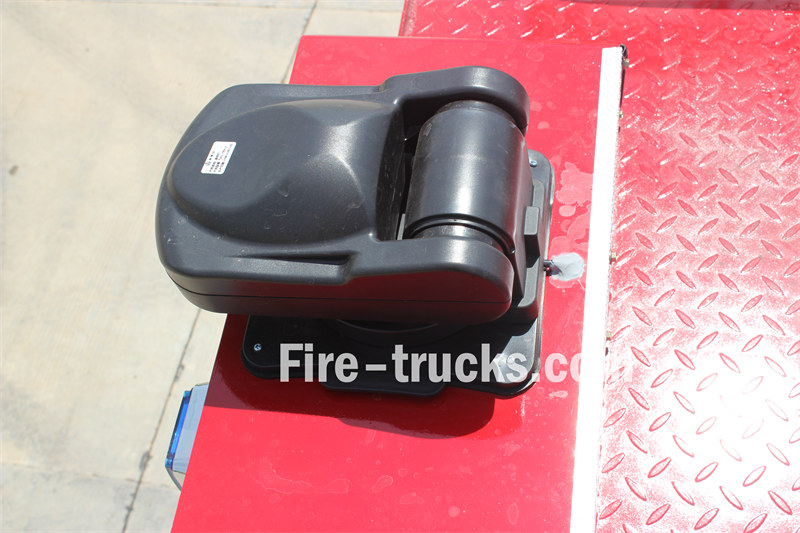

Rear searching light

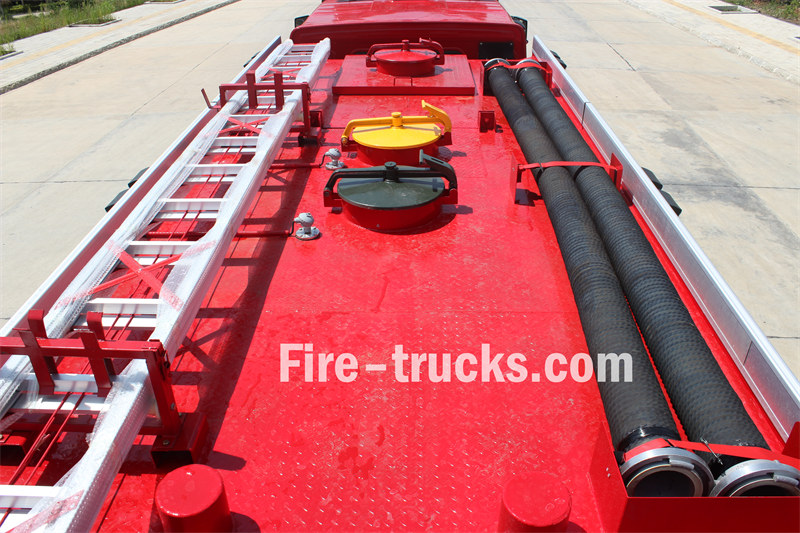

Top view of HOWO fire truck

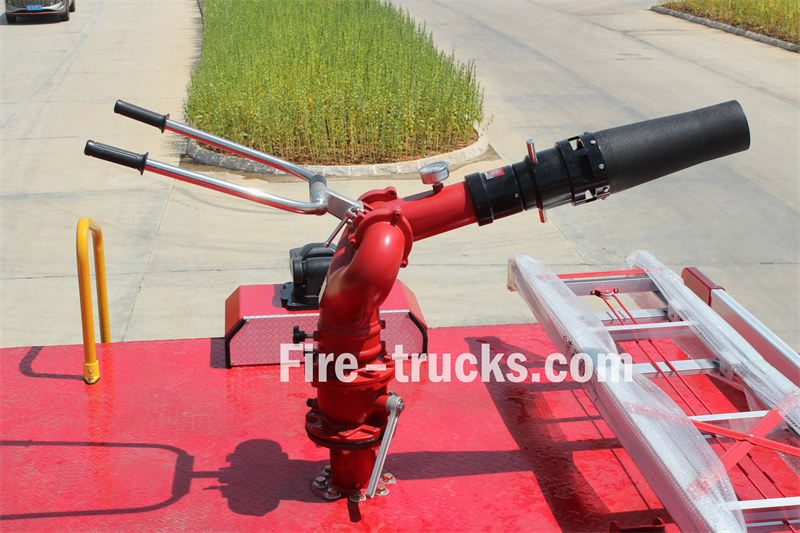

PL8/48 fire fighting monitor

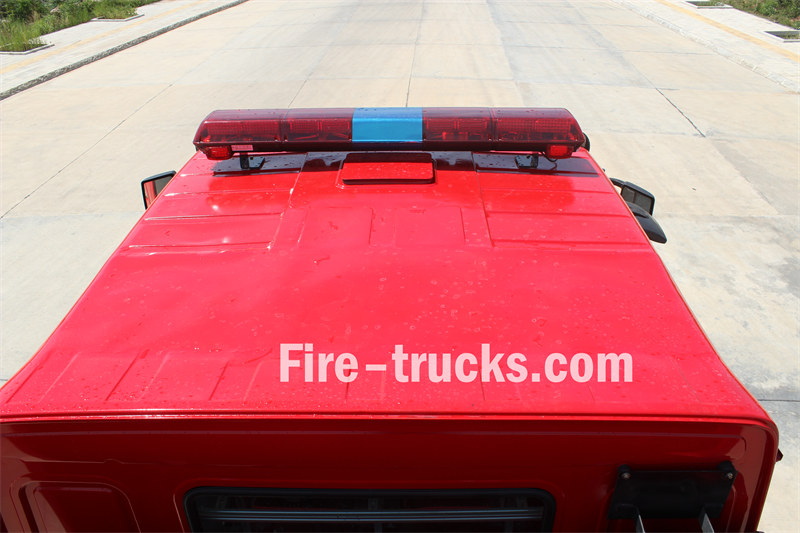

Fire truck with siren on cabin top

» Ⅸ. Isuzu Fire Engine Preshipment Testing:

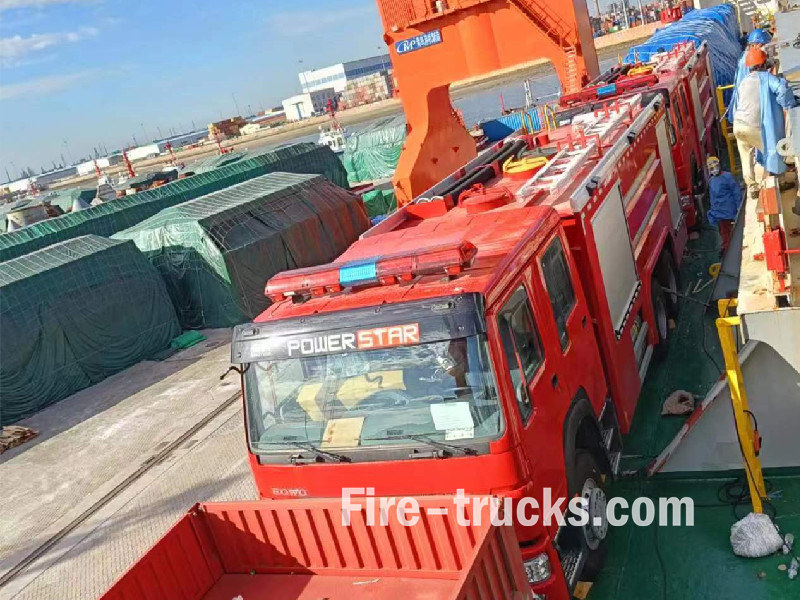

Sinotruk HOWO pumper fire fighting trucks done multiple factory testing, then can be ready for shipment to Africa Mauritania from China SHANGHAI seaport, then loading on bulk shipment for delivery, to guarantee dlivery more safety and no rust. We will have all HOWO fire engine waxed in our factory, then covered by curtain for multiple guarantee.

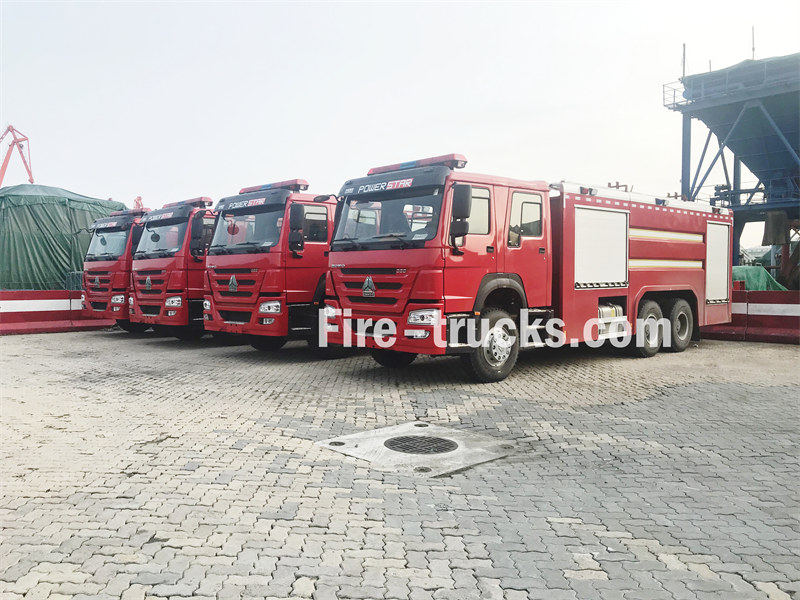

Sinotruk fire truck shipping from SHANGHAI port
