FAW 4x4 မြေပြင်ရေတင်ဒါ

[if gte mso 9]> Normal 0 7. 0 2 valid:If false false EN-US ZH-CN X-NONE m:val="1440"/> LsdException Locked="false" SemiHidden="true" UnhideWhenUsed="true" Name="index 8"/> Priority="39" SemiHidden="true" UnhideWhenUsed="true" Name="toc 6"/> Priority="35" SemiHidden="true" UnhideWhenUsed="true" QFormat="true" Name="caption"/> LsdException Locked="false" SemiHidden="true" UnhideWhenUsed="true" Name="List Number 2"/> UnhideWhenUsed="true" Name="LsdException" Locked="false" SemiHidden="true" UnhideWhenUsed="true" Name="HTML Top of Form"/> UnhideWhenUsed="true" Name="HTML Cite"/> " Nameful:3LsdException Locked="false" SemiHidden="true" UnhideWhenUsed="true" Name="Table Columns 1"/> Locked="false" SemiHidden="true" UnhideWhenUsed="true" Name="ဇယားစာရင်း 8"/> UnhideWhen Locked="false" Priority="60" Name="Light Shading"/> Locked="false" Priority="64" Name="Medium Shading 2"/> LsdException Priority="63" Shading> Locked="false" Priority="64" Name="Medium Shading 2 Accent 1"/> Name="Medium Shading 2 Accent 2"/> Name="Light Grid Accent 4"/> Priority="69" Name="Medium Grid 3 Accent 4"/> Priority="62" Name="Light Grid Accent 5"/> Locked="false" Priority="67" Name="Medium Grid 1 Accent 6"/> Name="Dark List Accent 6"/> Name="Grid Table 2"/> Name="Grid Table 5 Dark Accent 2"/> Priority="51" Name="Grid Table 6 Colorful Accent 3"/> Priority="Grid4" 6 Priority="52" Name="List Table 7 Colorful"/> LsdException Locked="false" Priority="47" Name="List Table 2 Accent 3"/> Name="List Table 1 Light Accent 4"/> Colorful 7/2>

The FAW 4 × 4 All-Terrain Fire Truck is a professional firefighting vehicle designed for extreme environments, capable of performing firefighting and rescue missions in challenging conditions such as mountains, deserts, earthquakes, and floods. The vehicle is modified based on FAW 4 × 4 all-terrain off-road chassis, with overall dimensions of 7,440 × 2,550 × 3,250 mm and a gross weight of 12,900 kg, featuring left-hand drive. Its unique full-time four-wheel drive system, combined with large 395/85R20 14PR off-road tires, grants the vehicle exceptional terrain adaptability, with a maximum gradient of over 60%, a trench-crossing width of 75 cm, a vertical obstacle clearance of 60 cm, and a wading depth of up to 1.5 meters. Notably, this fire truck is equipped with an automatic tire inflation-deflation system that adjusts tire pressure in real-time based on road conditions, significantly improving mobility on complex surfaces like sand and mud.

The FAW 4 × 4 All-Terrain Water Tender is powered by a CA6DL6-35E68 diesel engine, an 8.57-liter powerplant compliant with Euro VI emission standards, delivering a maximum power output of 261 kW (350 hp). The engine utilizes advanced turbocharging technology and a common-rail fuel injection system, ensuring robust performance even in high-altitude, low-oxygen environments. It is paired with a 9-speed automated manual transmission that offers smooth shifting and ease of operation, significantly reducing driver workload in complex terrains.

As a professional firefighting vehicle, the FAW 4 × 4 fire engine is equipped with a comprehensive firefighting system. Its 2,000-liter stainless steel water tank is constructed from high-quality materials and includes a manhole, overflow/pressure relief devices, a liquid level sensor, and a drainage port to ensure safe and reliable water supply. The CB10/30 standard-pressure fire pump has a rated flow of 30L/s, an operating pressure of 1.0 MPa, a suction depth of 7 meters, and a startup time of less than 50 seconds, enabling rapid deployment for firefighting operations. The PS8/20W fire monitor operates at 0.8 MPa, with a water jet range exceeding 45 meters, 360 ° horizontal rotation, and a vertical elevation range of -35 ° to 70 ° , offering flexible operation and wide coverage. This system is particularly suited for long-range, high-altitude firefighting missions and can quickly replenish water from external sources in arid regions to sustain prolonged operations.

The FAW 4 × 4 Off-road Firefighting Truck excels in environmental adaptability. It can operate reliably in extreme temperatures ranging from -40 ° C to 45 ° C, making it ideal for firefighting needs in both frigid and scorching regions. Its high-altitude performance is equally impressive, maintaining stable operation at altitudes above 5,000 meters, making it an optimal firefighting solution for plateau areas.

● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service

Product Specifications

[if gte mso 9]> Normal 0 7.8 磅 0 2 false false false EN-US ZH-CN X-NONE

ထုတ်ကုန်အင်္ဂါရပ်များ

FAW 4×4 Fire Tanker Truck ၏ အဓိကအင်္ဂါရပ်များ-

1. အအေးဒဏ်ခံနိုင်ရည်- အပူချိန် -40°C မှ 45°C အတွင်း လုပ်ဆောင်သည်။
2. အမြင့် စွမ်းဆောင်ရည်- အမြင့် 5,000 မီတာအထက်တွင် လုပ်ဆောင်ချက်များ။
3. ကျယ်ပြန့်သောလျှောက်လွှာ တောများ၊ မြက်ခင်းပြင်များနှင့် အခြားစိန်ခေါ်မှုပတ်ဝန်းကျင်များတွင် မီးငြှိမ်းသတ်ရေးနှင့် ကယ်ဆယ်ရေးမစ်ရှင်များအတွက် ဒီဇိုင်းထုတ်ထားသည်။
4. သာလွန်သောရွေ့လျားနိုင်မှု- ရှုပ်ထွေးသောမြေပြင်အမျိုးမျိုးကိုကိုင်တွယ်ရန် အလိုအလျောက်တာယာဖောင်းပွမှု- deflation စနစ်ပါရှိသော အချိန်ပြည့် လေးဘီးယက်၊ အမြင့်ဆုံးရေအနက် 1.5 မီတာ။
5. Intelligent Operation- ကြိုးမဲ့အဝေးထိန်းစနစ်ဖြင့် တစ်ချက်ထိ၍ ဉာဏ်ရည်ထက်မြက်သော မီးသတ်စနစ်။

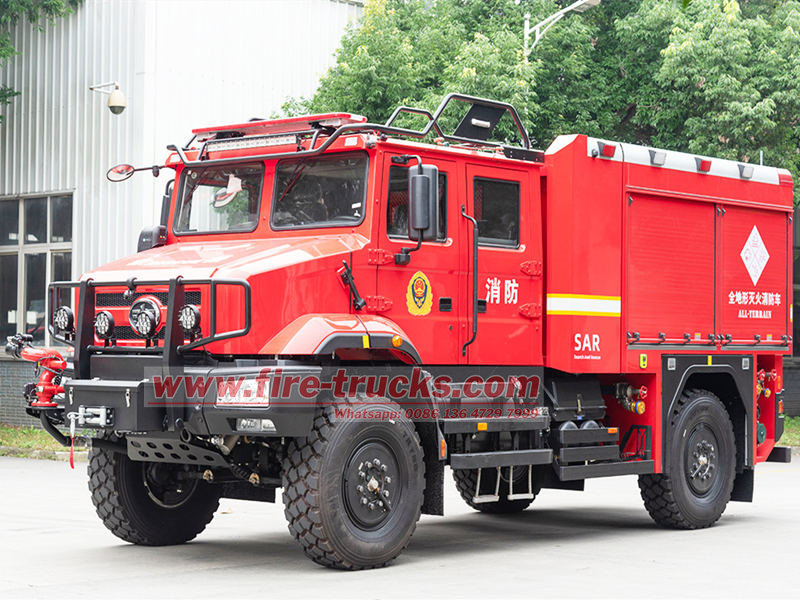

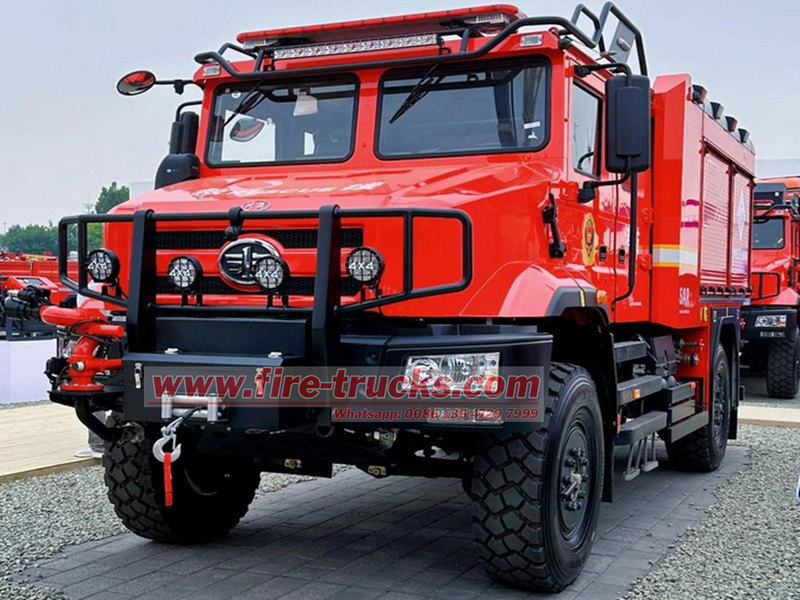

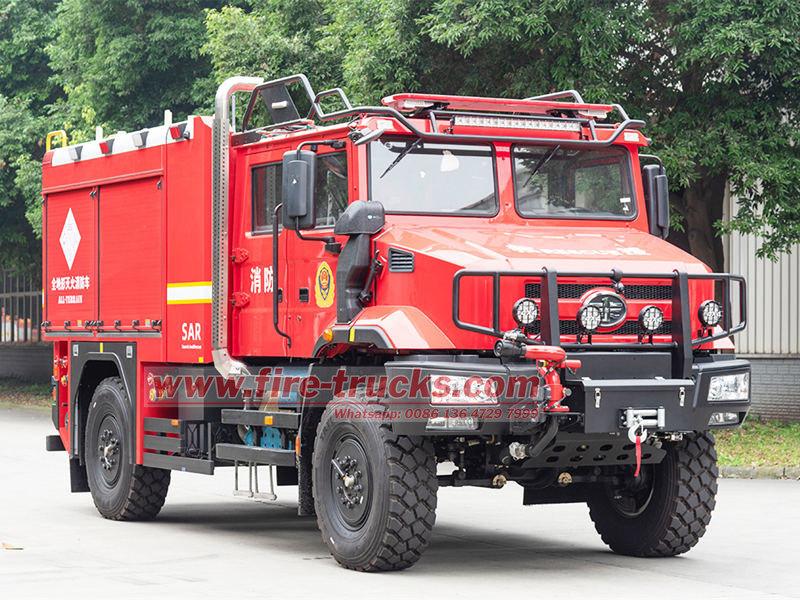

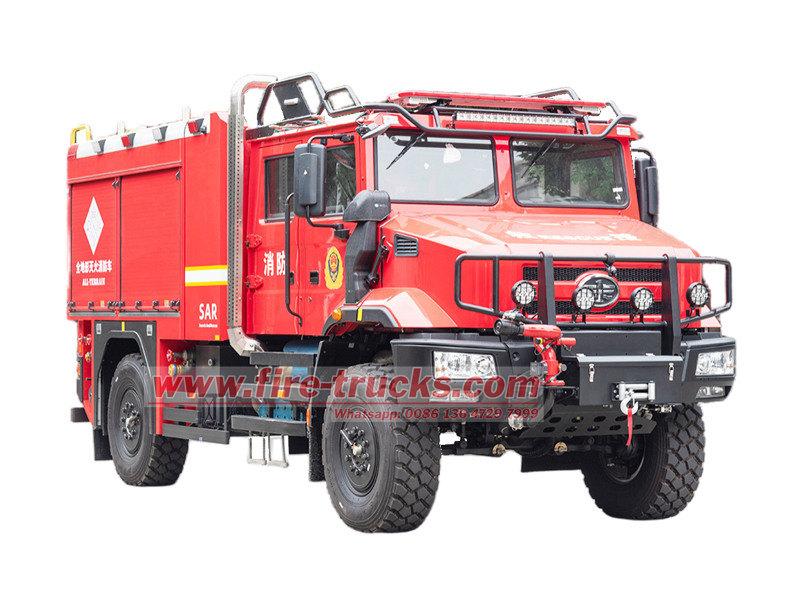

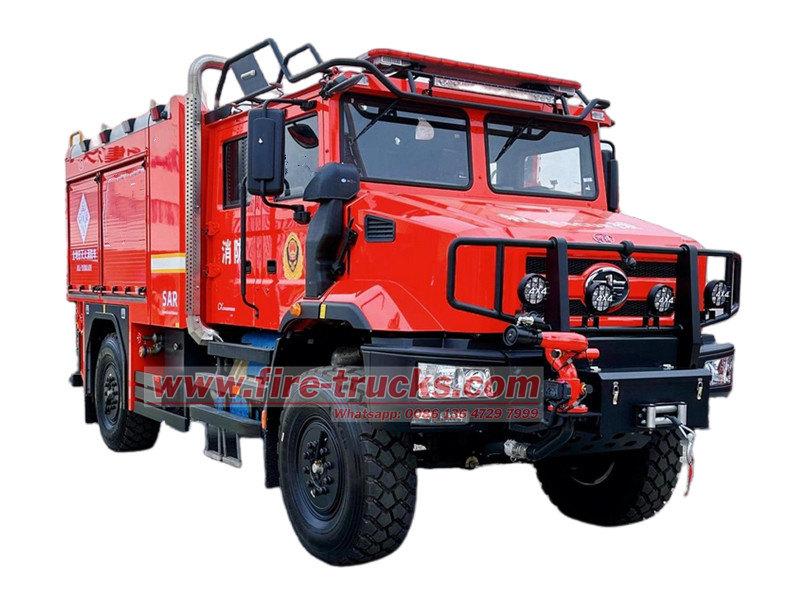

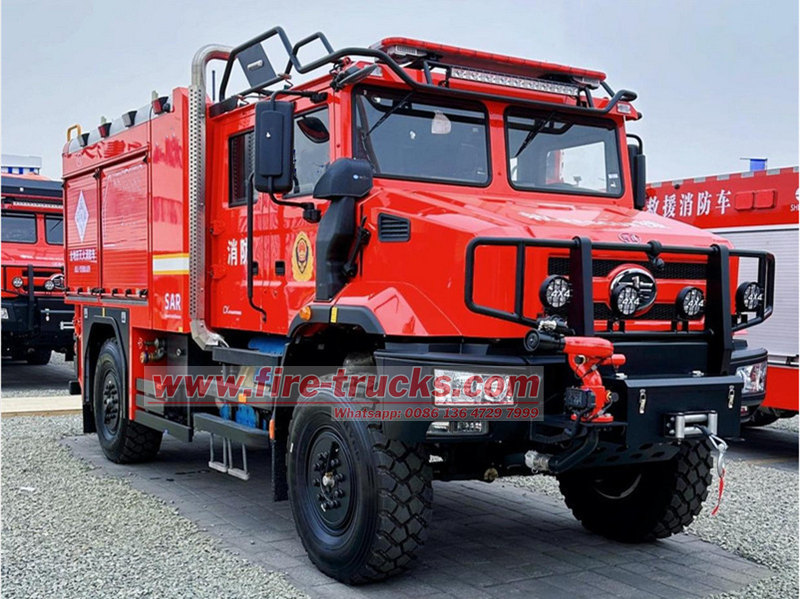

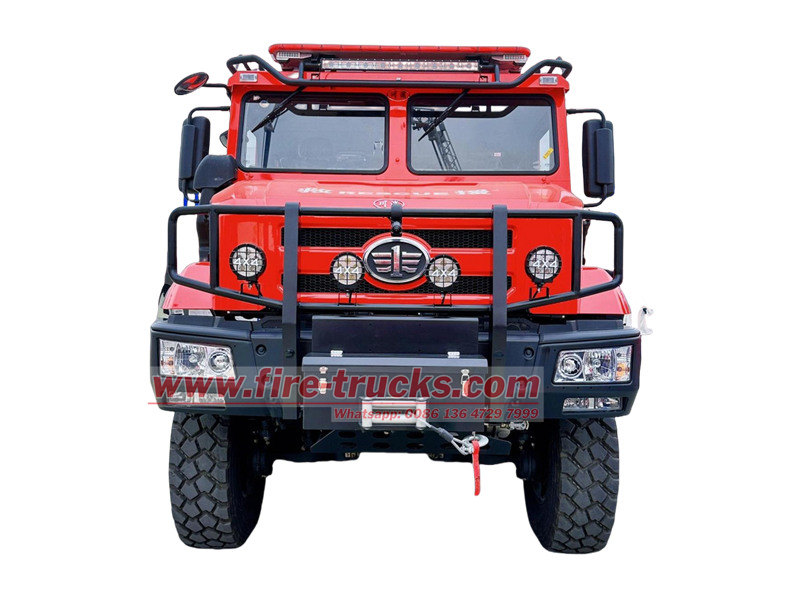

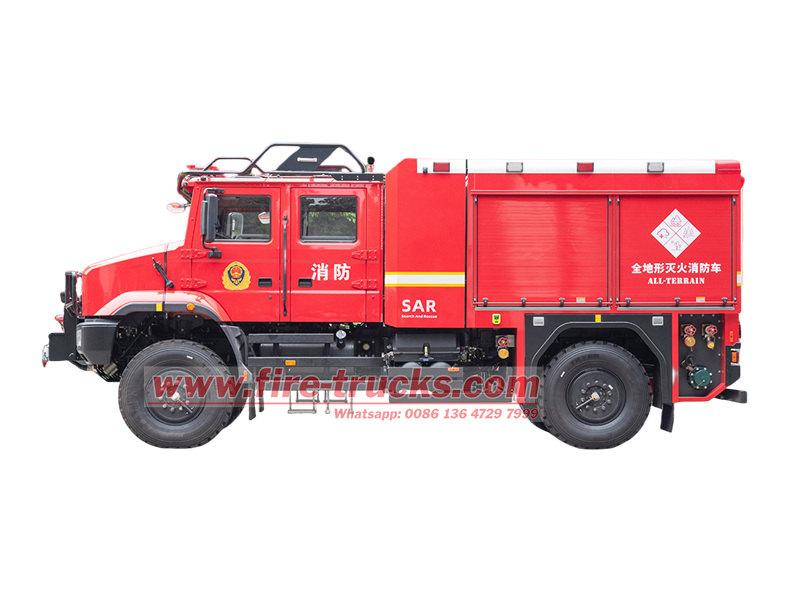

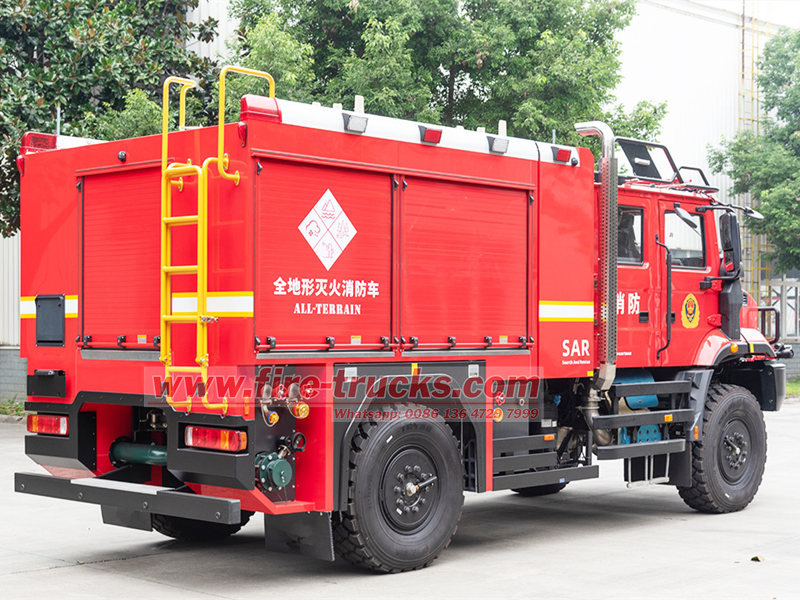

ကုန်ပစ္စည်းပုံများ
